Probability and Statistics

Required Reading

• This page.

Supplemental Readings

• Why It’s So Hard for Us to Visualize Uncertainty
• Amanda Cox’s keynote address at the 2017 OpenVis Conf
• Communicating Uncertainty When Lives Are on the Line
• Showing uncertainty during the live election forecast & Trolling the uncertainty dial

Guiding Questions

• Why is uncertainty inherently a major part of data analytics?
• How have past attempts to visualize uncertainty failed?
• What is the right way to visualize election uncertainty?

Discrete probability

We’ll start today’s topic by covering some basic principles related to categorical data. The subset of probability is referred to as discrete probability. It will help us understand the probability theory we will later introduce for numeric and continuous data, which is much more common in data science applications. Discrete probability is more useful in card games and therefore we use these as examples.

Relative frequency

The word probability is used in everyday language. Answering questions about probability is often hard, if not impossible. Here we discuss a mathematical definition of probability that does permit us to give precise answers to certain questions.

For example, if I have 2 red beads and 3 blue beads inside an urn¹ (most probability books use this archaic term, so we do too) and I pick one at random, what is the probability of picking a red one? Our intuition tells us that the answer is 2/5 or 40%. A precise definition can be given by noting that there are five possible outcomes of which two satisfy the condition necessary for the event “pick a red bead”. Since each of the five outcomes has the same chance of occurring, we conclude that the probability is .4 for red and .6 for blue.

A more tangible way to think about the probability of an event is as the proportion of times the event occurs when we repeat the experiment an infinite number of times, independently, and under the same conditions.

Notation

We use the notation $\text{Pr}(A)$ to denote the probability of event $A$ happening. We use the very general term event to refer to things that can happen when something occurs by chance. In our previous example, the event was “picking a red bead”. In a political poll in which we call 100 likely voters at random, an example of an event is “calling 48 Democrats and 52 Republicans”.

In data science applications, we will often deal with continuous variables. These events will often be things like “is this person taller than 6 feet”. In this case, we write events in a more mathematical form: $X\ge 6$. We will see more of these examples later. Here we focus on categorical data.

Probability distributions

If we know the relative frequency of the different categories, defining a distribution for categorical outcomes is relatively straightforward. We simply assign a probability to each category. In cases that can be thought of as beads in an urn, for each bead type, their proportion defines the distribution.

If we are randomly calling likely voters from a population that is 44% Democrat, 44% Republican, 10% undecided, and 2% Green Party, these proportions define the probability for each group. The probability distribution is:

Pr(picking a Republican)	=	0.44
Pr(picking a Democrat)	=	0.44
Pr(picking an undecided)	=	0.10
Pr(picking a Green)	=	0.02

Monte Carlo simulations for categorical data

Computers provide a way to actually perform the simple random experiment described above: pick a bead at random from a bag that contains three blue beads and two red ones. Random number generators permit us to mimic the process of picking at random.

An example is the sample function in R. We demonstrate its use in the code below. First, we use the function rep to generate the urn:

beads <- rep(c("red", "blue"), times = c(2,3))
beads

[1] "red"  "red"  "blue" "blue" "blue"

and then use sample to pick a bead at random:

sample(beads, 1)

[1] "blue"

This line of code produces one random outcome. We want to repeat this experiment an infinite number of times, but it is impossible to repeat forever. Instead, we repeat the experiment a large enough number of times to make the results practically equivalent to repeating forever. This is an example of a Monte Carlo simulation.

Much of what mathematical and theoretical statisticians study, which we do not cover in this class, relates to providing rigorous definitions of “practically equivalent” as well as studying how close a large number of experiments gets us to what happens in the limit. Later in this lecture, we provide a practical approach to deciding what is “large enough”.

To perform our first Monte Carlo simulation, we use the replicate function, which permits us to repeat the same task any number of times. Here, we repeat the random event $B=$ 10,000 times:

B <- 10000
events <- replicate(B, sample(beads, 1))

We can now see if our definition actually is in agreement with this Monte Carlo simulation approximation. We can use table to see the distribution:

tab <- table(events)
tab

events
blue  red
5929 4071

and prop.table gives us the proportions:

prop.table(tab)

events
  blue    red
0.5929 0.4071

The numbers above are the estimated probabilities provided by this Monte Carlo simulation. Statistical theory, not covered here, tells us that as $B$ gets larger, the estimates get closer to 3/5=.6 and 2/5=.4.

Although this is a simple and not very useful example, we will use Monte Carlo simulations to estimate probabilities in cases in which it is harder to compute the exact ones. Before delving into more complex examples, we use simple ones to demonstrate the computing tools available in R.

Setting the random seed

Before we continue, we will briefly explain the following important line of code:

set.seed(1986)

Throughout this class, we use random number generators. This implies that many of the results presented can actually change by chance, which then suggests that a frozen version of the class may show a different result than what you obtain when you try to code as shown in the class. This is actually fine since the results are random and change from time to time. However, if you want to ensure that results are exactly the same every time you run them, you can set R’s random number generation seed to a specific number. Above we set it to 1986. We want to avoid using the same seed everytime. A popular way to pick the seed is the year - month - day. For example, we picked 1986 on December 20, 2018: $2018-12-20=1986$.

You can learn more about setting the seed by looking at the documentation:

?set.seed

In the exercises, we may ask you to set the seed to assure that the results you obtain are exactly what we expect them to be.

With and without replacement

The function sample has an argument that permits us to pick more than one element from the urn. However, by default, this selection occurs without replacement: after a bead is selected, it is not put back in the bag. Notice what happens when we ask to randomly select five beads:

sample(beads, 5)

[1] "red"  "blue" "blue" "blue" "red"

sample(beads, 5)

[1] "red"  "red"  "blue" "blue" "blue"

sample(beads, 5)

[1] "blue" "red"  "blue" "red"  "blue"

This results in rearrangements that always have three blue and two red beads. If we ask that six beads be selected, we get an error:

sample(beads, 6)

Error in sample.int(length(x), size, replace, prob) : cannot take a sample larger than the population when 'replace = FALSE'

However, the sample function can be used directly, without the use of replicate, to repeat the same experiment of picking 1 out of the 5 beads, continually, under the same conditions. To do this, we sample with replacement: return the bead back to the urn after selecting it. We can tell sample to do this by changing the replace argument, which defaults to FALSE, to replace = TRUE:

events <- sample(beads, B, replace = TRUE)
prop.table(table(events))

events
  blue    red
0.6017 0.3983

Not surprisingly, we get results very similar to those previously obtained with replicate.

Independence

We say two events are independent if the outcome of one does not affect the other. The classic example is coin tosses. Every time we toss a fair coin, the probability of seeing heads is 1/2 regardless of what previous tosses have revealed. The same is true when we pick beads from an urn with replacement. In the example above, the probability of red is 0.40 regardless of previous draws.

Many examples of events that are not independent come from card games. When we deal the first card, the probability of getting a King is 1/13 since there are thirteen possibilities: Ace, Deuce, Three, $\dots$, Ten, Jack, Queen, King, and Ace. Now if we deal a King for the first card, and don’t replace it into the deck, the probabilities of a second card being a King is less because there are only three Kings left: the probability is 3 out of 51. These events are therefore not independent: the first outcome affected the next one.

To see an extreme case of non-independent events, consider our example of drawing five beads at random without replacement:

x <- sample(beads, 5)

If you have to guess the color of the first bead, you will predict blue since blue has a 60% chance. But if I show you the result of the last four outcomes:

x[2:5]

[1] "blue" "blue" "blue" "red"

would you still guess blue? Of course not. Now you know that the probability of red is 1 since the only bead left is red. The events are not independent, so the probabilities change.

Conditional probabilities

When events are not independent, conditional probabilities are useful. We already saw an example of a conditional probability: we computed the probability that a second dealt card is a King given that the first was a King. In probability, we use the following notation:

$$\text{Pr}(\text{Card 2 is a king}\mid \text{Card 1 is a king})=3/51$$

We use the $\mid$ as shorthand for “given that” or “conditional on”.

When two events, say $A$ and $B$, are independent, we have:

$$\text{Pr}(A\mid B)=\text{Pr}(A)$$

This is the mathematical way of saying: the fact that $B$ happened does not affect the probability of $A$ happening. In fact, this can be considered the mathematical definition of independence.

Addition and multiplication rules

Multiplication rule

If we want to know the probability of two events, say $A$ and $B$, occurring, we can use the multiplication rule:

$$\text{Pr}(A\text{ and }B)=\text{Pr}(A)\text{Pr}(B\mid A)$$ Let’s use Blackjack as an example. In Blackjack, you are assigned two random cards. After you see what you have, you can ask for more. The goal is to get closer to 21 than the dealer, without going over. Face cards are worth 10 points and Aces are worth 11 or 1 (you choose).

So, in a Blackjack game, to calculate the chances of getting a 21 by drawing an Ace and then a face card, we compute the probability of the first being an Ace and multiply by the probability of drawing a face card or a 10 given that the first was an Ace: $1/13\times 16/51\approx 0.025$

The multiplication rule also applies to more than two events. We can use induction to expand for more events:

$$\text{Pr}(A\text{ and }B\text{ and }C)=\text{Pr}(A)\text{Pr}(B\mid A)\text{Pr}(C\mid A\text{ and }B)$$

Multiplication rule under independence

When we have independent events, then the multiplication rule becomes simpler:

$$\text{Pr}(A\text{ and }B\text{ and }C)=\text{Pr}(A)\text{Pr}(B)\text{Pr}(C)$$

But we have to be very careful before using this since assuming independence can result in very different and incorrect probability calculations when we don’t actually have independence.

As an example, imagine a court case in which the suspect was described as having a mustache and a beard. The defendant has a mustache and a beard and the prosecution brings in an “expert” to testify that 1/10 men have beards and 1/5 have mustaches, so using the multiplication rule we conclude that only $1/10\times 1/5$ or 0.02 have both.

But to multiply like this we need to assume independence! Say the conditional probability of a man having a mustache conditional on him having a beard is .95. So the correct calculation probability is much higher: $1/10\times 95/100=0.095$.

The multiplication rule also gives us a general formula for computing conditional probabilities:

$$\text{Pr}(B\mid A)=\frac{\text{Pr}(A\text{ and }B)}{\text{Pr}(A)}$$

To illustrate how we use these formulas and concepts in practice, we will use several examples related to card games.

Addition rule

The addition rule tells us that:

$$\text{Pr}(A\text{ or }B)=\text{Pr}(A)+\text{Pr}(B)-\text{Pr}(A\text{ and }B)$$

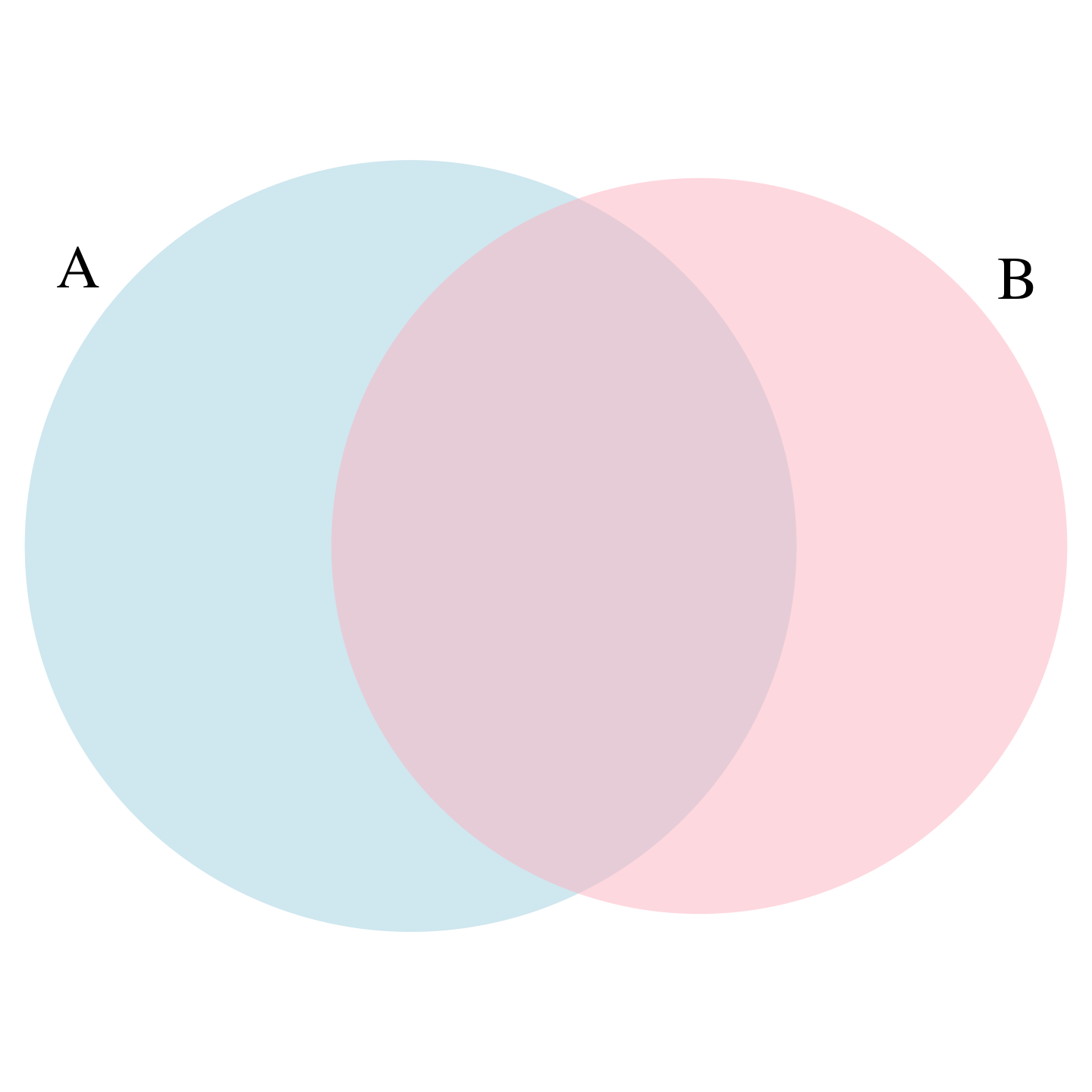

This rule is intuitive: think of a Venn diagram. If we simply add the probabilities, we count the intersection twice so we need to substract one instance.

Combinations and permutations

In our very first example, we imagined an urn with five beads. As a reminder, to compute the probability distribution of one draw, we simply listed out all the possibilities. There were 5 and so then, for each event, we counted how many of these possibilities were associated with the event. The resulting probability of choosing a blue bead is 3/5 because out of the five possible outcomes, three were blue.

For more complicated cases, the computations are not as straightforward. For instance, what is the probability that if I draw five cards without replacement, I get all cards of the same suit, what is known as a “flush” in poker? In a discrete probability course you learn theory on how to make these computations. Here we focus on how to use R code to compute the answers.

First, let’s construct a deck of cards. For this, we will use the expand.grid and paste functions. We use paste to create strings by joining smaller strings. To do this, we take the number and suit of a card and create the card name like this:

number <- "Three"
suit <- "Hearts"
paste(number, suit)

[1] "Three Hearts"

paste also works on pairs of vectors performing the operation element-wise:

paste(letters[1:5], as.character(1:5))

[1] "a 1" "b 2" "c 3" "d 4" "e 5"

The function expand.grid gives us all the combinations of entries of two vectors. For example, if you have blue and black pants and white, grey, and plaid shirts, all your combinations are:

expand.grid(pants = c("blue", "black"), shirt = c("white", "grey", "plaid"))

  pants shirt
1  blue white
2 black white
3  blue  grey
4 black  grey
5  blue plaid
6 black plaid

Here is how we generate a deck of cards:

suits <- c("Diamonds", "Clubs", "Hearts", "Spades")
numbers <- c("Ace", "Deuce", "Three", "Four", "Five", "Six", "Seven",
             "Eight", "Nine", "Ten", "Jack", "Queen", "King")
deck <- expand.grid(number=numbers, suit=suits)
deck <- paste(deck$number, deck$suit)

With the deck constructed, we can double check that the probability of a King in the first card is 1/13 by computing the proportion of possible outcomes that satisfy our condition:

kings <- paste("King", suits)
mean(deck %in% kings)

[1] 0.07692308

Now, how about the conditional probability of the second card being a King given that the first was a King? Earlier, we deduced that if one King is already out of the deck and there are 51 left, then this probability is 3/51. Let’s confirm by listing out all possible outcomes.

To do this, we can use the permutations function from the gtools package. For any list of size n, this function computes all the different combinations we can get when we select r items. Here are all the ways we can choose two numbers from a list consisting of 1,2,3:

library(gtools)
permutations(3, 2)

     [,1] [,2]
[1,]    1    2
[2,]    1    3
[3,]    2    1
[4,]    2    3
[5,]    3    1
[6,]    3    2

Notice that the order matters here: 3,1 is different than 1,3. Also, note that (1,1), (2,2), and (3,3) do not appear because once we pick a number, it can’t appear again.

Optionally, we can add a vector. If you want to see five random seven digit phone numbers out of all possible phone numbers (without repeats), you can type:

all_phone_numbers <- permutations(10, 7, v = 0:9)
n <- nrow(all_phone_numbers)
index <- sample(n, 5)
all_phone_numbers[index,]

     [,1] [,2] [,3] [,4] [,5] [,6] [,7]
[1,]    1    3    8    0    6    7    5
[2,]    2    9    1    6    4    8    0
[3,]    5    1    6    0    9    8    2
[4,]    7    4    6    0    2    8    1
[5,]    4    6    5    9    2    8    0

Instead of using the numbers 1 through 10, the default, it uses what we provided through v: the digits 0 through 9.

To compute all possible ways we can choose two cards when the order matters, we type:

hands <- permutations(52, 2, v = deck)

This is a matrix with two columns and 2652 rows. Here’s what it looks like:

head(hands)

     [,1]        [,2]
[1,] "Ace Clubs" "Ace Diamonds"
[2,] "Ace Clubs" "Ace Hearts"
[3,] "Ace Clubs" "Ace Spades"
[4,] "Ace Clubs" "Deuce Clubs"
[5,] "Ace Clubs" "Deuce Diamonds"
[6,] "Ace Clubs" "Deuce Hearts"

With a matrix we can get the first and second cards like this:

first_card <- hands[,1]
second_card <- hands[,2]

Now the cases for which the first hand was a King can be computed like this:

kings <- paste("King", suits)
sum(first_card %in% kings)

[1] 204

To get the conditional probability, we compute what fraction of these have a King in the second card:

sum(first_card%in%kings & second_card%in%kings) / sum(first_card%in%kings)

[1] 0.05882353

which is exactly 3/51, as we had already deduced. Notice that the code above is equivalent to:

mean(first_card%in%kings & second_card%in%kings) / mean(first_card%in%kings)

[1] 0.05882353

which uses mean instead of sum and is an R version of:

$$\frac{\text{Pr}(A\text{ and }B)}{\text{Pr}(A)}$$

How about if the order doesn’t matter? For example, in Blackjack if you get an Ace and a face card in the first draw, it is called a Natural 21 and you win automatically. If we wanted to compute the probability of this happening, we would enumerate the combinations, not the permutations, since the order does not matter.

combinations(3,2)

     [,1] [,2]
[1,]    1    2
[2,]    1    3
[3,]    2    3

In the second line, the outcome does not include (2,1) because (1,2) already was enumerated. The same applies to (3,1) and (3,2).

So to compute the probability of a Natural 21 in Blackjack, we can do this:

aces <- paste("Ace", suits)

facecard <- c("King", "Queen", "Jack", "Ten")
facecard <- expand.grid(number = facecard, suit = suits)
facecard <- paste(facecard$number, facecard$suit)

hands <- combinations(52, 2, v = deck)
mean(hands[,1] %in% aces & hands[,2] %in% facecard)

[1] 0.04826546

In the last line, we assume the Ace comes first. This is only because we know the way combination enumerates possibilities and it will list this case first. But to be safe, we could have written this and produced the same answer:

mean((hands[,1] %in% aces & hands[,2] %in% facecard) |
       (hands[,2] %in% aces & hands[,1] %in% facecard))

[1] 0.04826546

Monte Carlo example

Instead of using combinations to deduce the exact probability of a Natural 21, we can use a Monte Carlo to estimate this probability. In this case, we draw two cards over and over and keep track of how many 21s we get. We can use the function sample to draw two cards without replacements:

hand <- sample(deck, 2)
hand

[1] "Queen Clubs"  "Seven Spades"

And then check if one card is an Ace and the other a face card or a 10. Going forward, we include 10 when we say face card. Now we need to check both possibilities:

(hand[1] %in% aces & hand[2] %in% facecard) |
  (hand[2] %in% aces & hand[1] %in% facecard)

[1] FALSE

If we repeat this 10,000 times, we get a very good approximation of the probability of a Natural 21.

Let’s start by writing a function that draws a hand and returns TRUE if we get a 21. The function does not need any arguments because it uses objects defined in the global environment.

blackjack <- function(){
   hand <- sample(deck, 2)
  (hand[1] %in% aces & hand[2] %in% facecard) |
    (hand[2] %in% aces & hand[1] %in% facecard)
}

Here we do have to check both possibilities: Ace first or Ace second because we are not using the combinations function. The function returns TRUE if we get a 21 and FALSE otherwise:

blackjack()

[1] FALSE

Now we can play this game, say, 10,000 times:

B <- 10000
results <- replicate(B, blackjack())
mean(results)

[1] 0.0475

Examples

In this section, we describe two discrete probability popular examples: the Monty Hall problem and the birthday problem. We’ll use R to help illustrate the mathematical concepts and to demostrate an idea that we’ll return to: simulation.

Monty Hall problem

In the 1970s, there was a game show called “Let’s Make a Deal” and Monty Hall was the host. At some point in the game, contestants were asked to pick one of three doors. Behind one door there was a prize. The other doors had a goat behind them to show the contestant they had lost. After the contestant picked a door, before revealing whether the chosen door contained a prize, Monty Hall would open one of the two remaining doors and show the contestant there was no prize behind that door. Then he would ask “Do you want to switch doors?” What would you do?

We can use probability to show that if you stick with the original door choice, your chances of winning a prize remain 1 in 3. However, if you switch to the other door, your chances of winning double to 2 in 3! This seems counterintuitive. Many people incorrectly think both chances are 1 in 2 since you are choosing between 2 options. You can watch a detailed mathematical explanation on Khan Academy² or read one on Wikipedia³. Below we use a Monte Carlo simulation to see which strategy is better. Note that this code is written longer than it should be for pedagogical purposes.

Let’s start with the stick strategy:

B <- 10000
monty_hall <- function(strategy){
  doors <- as.character(1:3)
  prize <- sample(c("car", "goat", "goat")) # no replacement
  prize_door <- doors[prize == "car"] # which door has the prize?
  my_pick  <- sample(doors, 1) # we pick a door at random
  show <- sample(doors[!doors %in% c(my_pick, prize_door)],1)
  stick <- my_pick
  switch <- doors[!doors%in%c(my_pick, show)]
  choice <- ifelse(strategy == "stick", stick, switch) # apply the strategy
  choice == prize_door # did we win?
}
stick <- replicate(B, monty_hall("stick"))
mean(stick)

[1] 0.3416

switch <- replicate(B, monty_hall("switch"))
mean(switch)

[1] 0.6682

As we write the code, we note that the lines starting with my_pick and show have no influence on the last logical operation when we stick to our original choice anyway. From this we should realize that the chance is 1 in 3, what we began with. When we switch, the Monte Carlo estimate confirms the 2/3 calculation. This helps us gain some insight by showing that we are removing a door, show, that is definitely not a winner from our choices. We also see that unless we get it right when we first pick, you win: 1 - 1/3 = 2/3.

Birthday problem

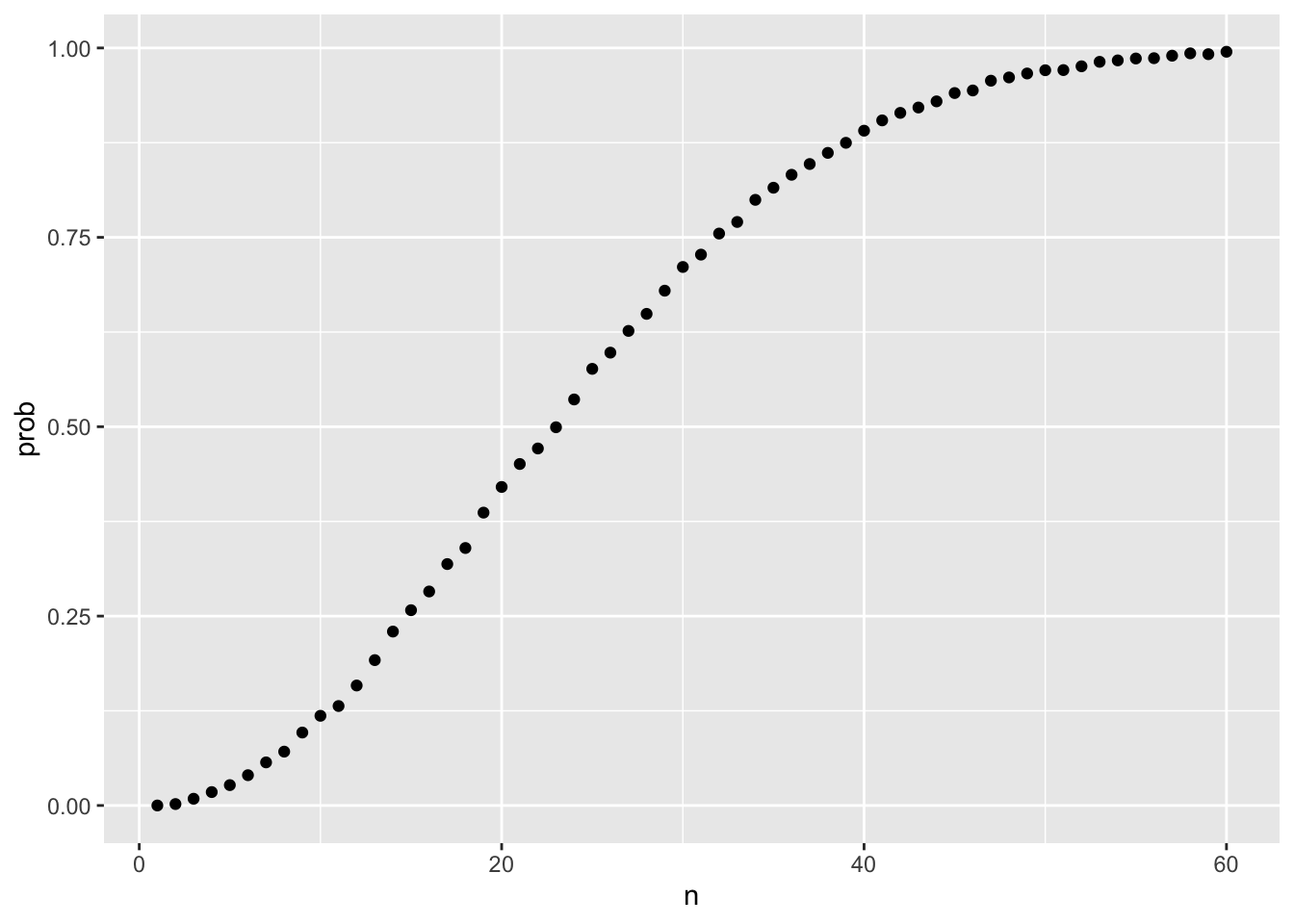

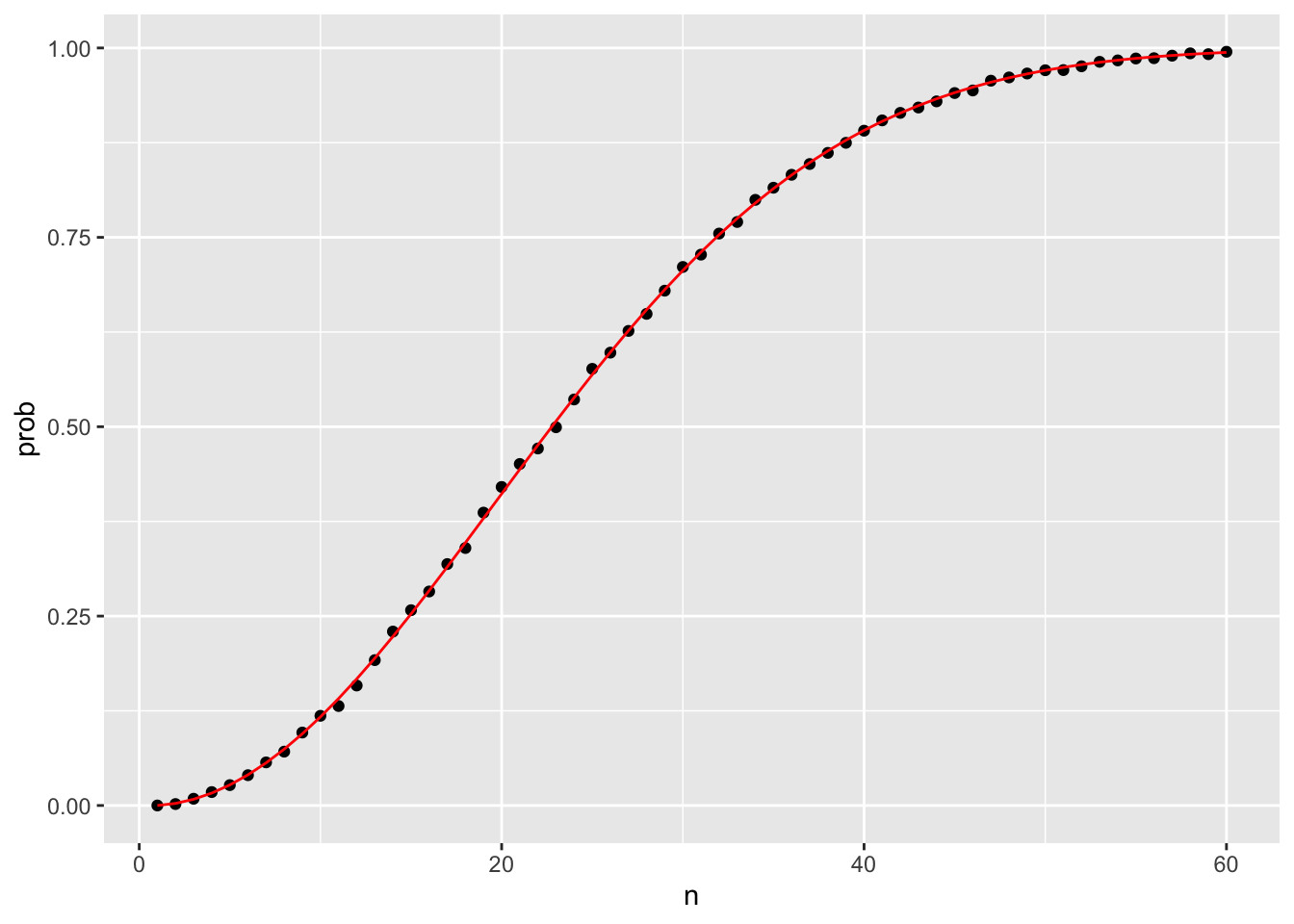

Suppose you are in a classroom with 50 people. If we assume this is a randomly selected group of 50 people, what is the chance that at least two people have the same birthday? Although it is somewhat advanced, we can deduce this mathematically. We will do this later. Here we use a Monte Carlo simulation. For simplicity, we assume nobody was born on February 29. This actually doesn’t change the answer much.

First, note that birthdays can be represented as numbers between 1 and 365, so a sample of 50 birthdays can be obtained like this:

n <- 50
bdays <- sample(1:365, n, replace = TRUE)

To check if in this particular set of 50 people we have at least two with the same birthday, we can use the function duplicated, which returns TRUE whenever an element of a vector is a duplicate. Here is an example:

duplicated(c(1,2,3,1,4,3,5))

[1] FALSE FALSE FALSE  TRUE FALSE  TRUE FALSE

The second time 1 and 3 appear, we get a TRUE. So to check if two birthdays were the same, we simply use the any and duplicated functions like this:

any(duplicated(bdays))

[1] TRUE

In this case, we see that it did happen. At least two people had the same birthday.

To estimate the probability of a shared birthday in the group, we repeat this experiment by sampling sets of 50 birthdays over and over:

B <- 10000
same_birthday <- function(n){
  bdays <- sample(1:365, n, replace=TRUE)
  any(duplicated(bdays))
}
results <- replicate(B, same_birthday(50))
mean(results)

[1] 0.9691

Were you expecting the probability to be this high?

People tend to underestimate these probabilities. To get an intuition as to why it is so high, think about what happens when the group size is close to 365. At this stage, we run out of days and the probability is one.

Say we want to use this knowledge to bet with friends about two people having the same birthday in a group of people. When are the chances larger than 50%? Larger than 75%?

Let’s create a look-up table. We can quickly create a function to compute this for any group size:

compute_prob <- function(n, B=10000){
  results <- replicate(B, same_birthday(n))
  mean(results)
}

Using the function sapply, we can perform element-wise operations on any function:

n <- seq(1,60)
prob <- sapply(n, compute_prob)

We can now make a plot of the estimated probabilities of two people having the same birthday in a group of size $n$:

library(tidyverse)
prob <- sapply(n, compute_prob)
dat = data.frame(n = n, prob = prob)
ggplot(dat, aes(x = n, y=prob)) +
  geom_point()

Now let’s compute the exact probabilities rather than use Monte Carlo approximations. Not only do we get the exact answer using math, but the computations are much faster since we don’t have to generate experiments.

To make the math simpler, instead of computing the probability of it happening, we will compute the probability of it not happening. For this, we use the multiplication rule.

Let’s start with the first person. The probability that person 1 has a unique birthday is 1. The probability that person 2 has a unique birthday, given that person 1 already took one, is 364/365. Then, given that the first two people have unique birthdays, person 3 is left with 363 days to choose from. We continue this way and find the chances of all 50 people having a unique birthday is:

$$1\times \frac{364}{365}\times \frac{363}{365}\dots \frac{365-n+1}{365}$$

We can write a function that does this for any number:

exact_prob <- function(n){
  prob_unique <- seq(365,365-n+1)/365
  1 - prod( prob_unique)
}
eprob <- sapply(n, exact_prob)
dat$eprob = eprob
ggplot(dat, aes(x = n, y = prob)) +
  geom_point() +
  geom_line(aes(y = eprob), col='red')

This plot shows that the Monte Carlo simulation provided a very good estimate of the exact probability. Had it not been possible to compute the exact probabilities, we would have still been able to accurately estimate the probabilities.

Infinity in practice

The theory described here requires repeating experiments over and over forever. In practice we can’t do this. In the examples above, we used $B=10,000$ Monte Carlo experiments and it turned out that this provided accurate estimates. The larger this number, the more accurate the estimate becomes until the approximaton is so good that your computer can’t tell the difference. But in more complex calculations, 10,000 may not be nearly enough. Also, for some calculations, 10,000 experiments might not be computationally feasible. In practice, we won’t know what the answer is, so we won’t know if our Monte Carlo estimate is accurate. We know that the larger $B$, the better the approximation. But how big do we need it to be? This is actually a challenging question and answering it often requires advanced theoretical statistics training.

One practical approach we will describe here is to check for the stability of the estimate. The following is an example with the birthday problem for a group of 25 people.

B <- 10^seq(1, 5, len = 100)
compute_prob <- function(B, n=25){
  same_day <- replicate(B, same_birthday(n))
  mean(same_day)
}
prob <- sapply(B, compute_prob)
dat = data.frame(logB = log10(B),
                 prob = prob)
ggplot(dat, aes(x = logB, y = prob)) +
  geom_line()

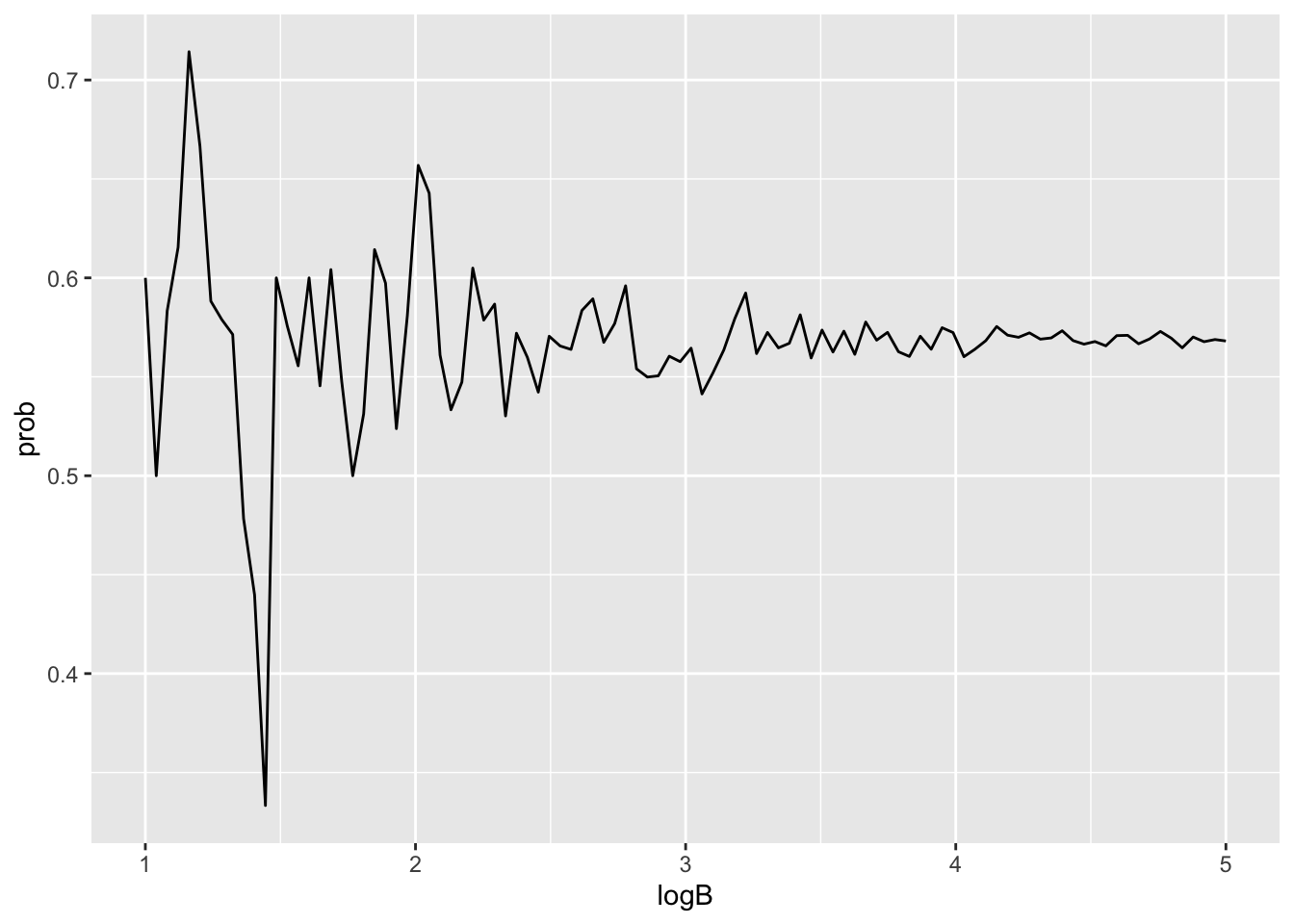

In this plot, we can see that the values start to stabilize (that is, they vary less than .01) around 1000. Note that the exact probability, which we know in this case, is 0.5686997.

TRY IT

1. One ball will be drawn at random from a box containing: 3 cyan balls, 5 magenta balls, and 7 yellow balls. What is the probability that the ball will be cyan?

2. What is the probability that the ball will not be cyan?

3. Instead of taking just one draw, consider taking two draws. You take the second draw without returning the first draw to the box. We call this sampling without replacement. What is the probability that the first draw is cyan and that the second draw is not cyan?

4. Now repeat the experiment, but this time, after taking the first draw and recording the color, return it to the box and shake the box. We call this sampling with replacement. What is the probability that the first draw is cyan and that the second draw is not cyan?

5. Two events $A$ and $B$ are independent if $\text{Pr}(A\text{ and }B)=\text{Pr}(A)P(B)$. Under which situation are the draws independent?

1. You don’t replace the draw.
2. You replace the draw.
3. Neither
4. Both

6. Say you’ve drawn 5 balls from the box, with replacement, and all have been yellow. What is the probability that the next one is yellow?

7. If you roll a 6-sided die six times, what is the probability of not seeing a 6?

8. Two teams, say the Celtics and the Cavs, are playing a seven game series. The Cavs are a better team and have a 60% chance of winning each game. What is the probability that the Celtics win at least one game?

9. Create a Monte Carlo simulation to confirm your answer to the previous problem. Use B <- 10000 simulations. Hint: use the following code to generate the results of the first four games:

celtic_wins <- sample(c(0,1), 4, replace = TRUE, prob = c(0.6, 0.4))

The Celtics must win one of these 4 games.

10. Two teams, say the Cavs and the Warriors, are playing a seven game championship series. The first to win four games, therefore, wins the series. The teams are equally good so they each have a 50-50 chance of winning each game. If the Cavs lose the first game, what is the probability that they win the series?

11. Confirm the results of the previous question with a Monte Carlo simulation.

12. Two teams, $A$ and $B$, are playing a seven game series. Team $A$ is better than team $B$ and has a $p>0.5$ chance of winning each game. Given a value $p$, the probability of winning the series for the underdog team $B$ can be computed with the following function based on a Monte Carlo simulation:

prob_win <- function(p){
  B <- 10000
  result <- replicate(B, {
    b_win <- sample(c(1,0), 7, replace = TRUE, prob = c(1-p, p))
    sum(b_win)>=4
  })
  mean(result)
}

Use the function sapply to compute the probability, call it Pr, of winning for p <- seq(0.5, 0.95, 0.025). Then plot the result.

13. Repeat the exercise above, but now keep the probability fixed at p <- 0.75 and compute the probability for different series lengths: best of 1 game, 3 games, 5 games,… Specifically, N <- seq(1, 25, 2). Hint: use this function:

prob_win <- function(N, p=0.75){
  B <- 10000
  result <- replicate(B, {
    b_win <- sample(c(1,0), N, replace = TRUE, prob = c(1-p, p))
    sum(b_win)>=(N+1)/2
  })
  mean(result)
}

In previous lectures, we explained why when summarizing a list of numeric values, such as heights, it is not useful to construct a distribution that defines a proportion to each possible outcome. For example, if we measure every single person in a very large population of size $n$ with extremely high precision, since no two people are exactly the same height, we need to assign the proportion $1/n$ to each observed value and attain no useful summary at all. Similarly, when defining probability distributions, it is not useful to assign a very small probability to every single height.

Just as when using distributions to summarize numeric data, it is much more practical to define a function that operates on intervals rather than single values. The standard way of doing this is using the cumulative distribution function (CDF).

We described empirical cumulative distribution function (eCDF) as a basic summary of a list of numeric values. As an example, we earlier defined the height distribution for adult male students. Here, we define the vector $x$ to contain these heights:

library(tidyverse)
library(dslabs)
data(heights)
x <- heights %>% filter(sex=="Male") %>% pull(height)

We defined the empirical distribution function as:

F <- function(a) mean(x<=a)

which, for any value a, gives the proportion of values in the list x that are smaller or equal than a.

Keep in mind that we have not yet introduced probability in the context of CDFs. Let’s do this by asking the following: if I pick one of the male students at random, what is the chance that he is taller than 70.5 inches? Because every student has the same chance of being picked, the answer to this is equivalent to the proportion of students that are taller than 70.5 inches. Using the CDF we obtain an answer by typing:

1 - F(70)

[1] 0.3768473

Once a CDF is defined, we can use this to compute the probability of any subset. For instance, the probability of a student being between height a and height b is:

F(b)-F(a)

Because we can compute the probability for any possible event this way, the cumulative probability function defines the probability distribution for picking a height at random from our vector of heights x.

Theoretical continuous distributions

The normal distribution is a useful approximation to many naturally occurring distributions, including that of height. The cumulative distribution for the normal distribution is defined by a mathematical formula which in R can be obtained with the function pnorm. We say that a random quantity is normally distributed with average m and standard deviation s if its probability distribution is defined by:

F(a) = pnorm(a, m, s)

This is useful because if we are willing to use the normal approximation for, say, height, we don’t need the entire dataset to answer questions such as: what is the probability that a randomly selected student is taller then 70 inches? We just need the average height and standard deviation:

m <- mean(x)
s <- sd(x)
1 - pnorm(70.5, m, s)

[1] 0.371369

Theoretical distributions as approximations

The normal distribution is derived mathematically: we do not need data to define it. For practicing data scientists, almost everything we do involves data. Data is always, technically speaking, discrete. For example, we could consider our height data categorical with each specific height a unique category. The probability distribution is defined by the proportion of students reporting each height. Here is a plot of that probability distribution:

While most students rounded up their heights to the nearest inch, others reported values with more precision. One student reported his height to be 69.6850393700787, which is 177 centimeters. The probability assigned to this height is 0.0012315 or 1 in 812. The probability for 70 inches is much higher at 0.1059113, but does it really make sense to think of the probability of being exactly 70 inches as being different than 69.6850393700787? Clearly it is much more useful for data analytic purposes to treat this outcome as a continuous numeric variable, keeping in mind that very few people, or perhaps none, are exactly 70 inches, and that the reason we get more values at 70 is because people round to the nearest inch.

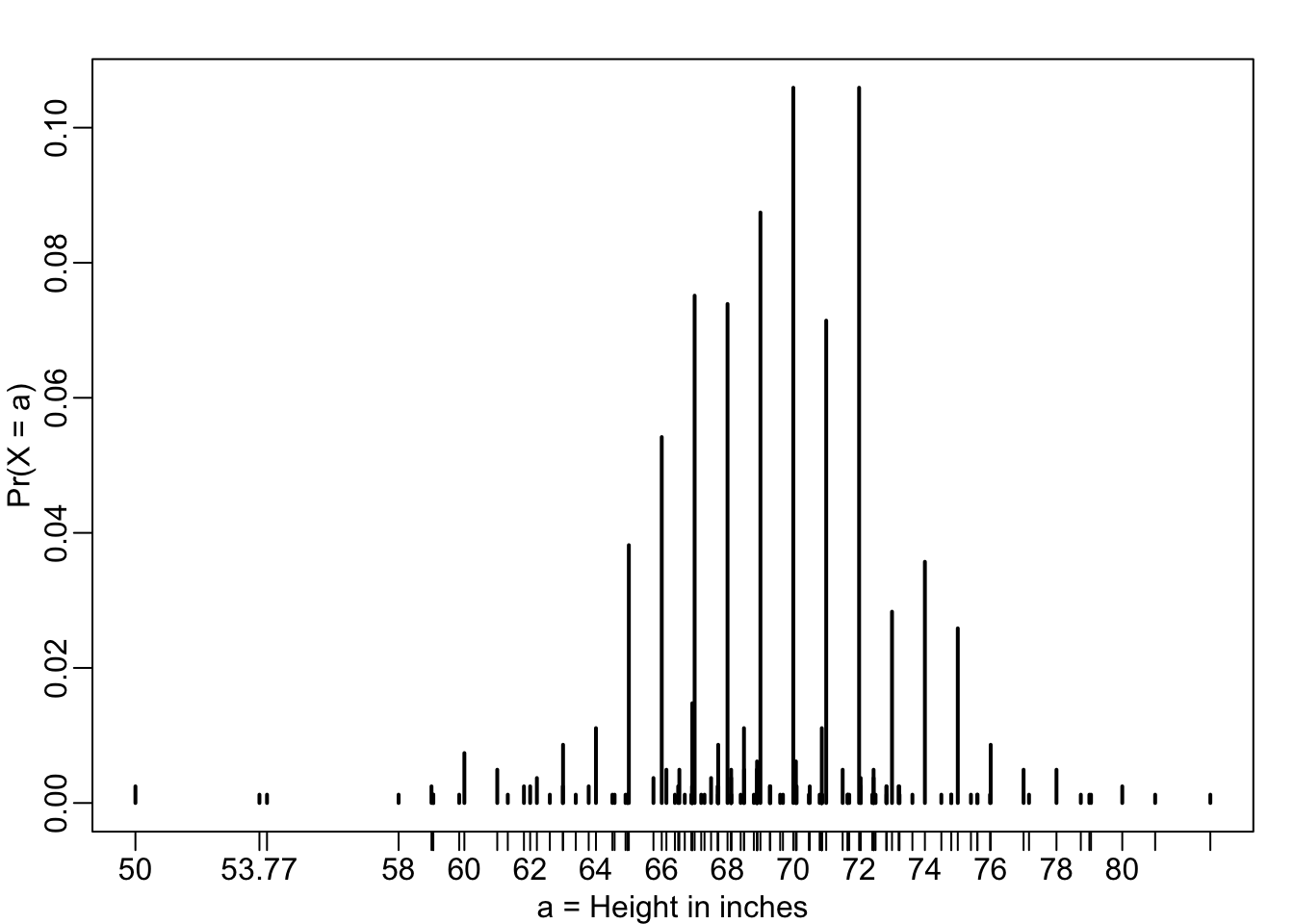

With continuous distributions, the probability of a singular value is not even defined. For example, it does not make sense to ask what is the probability that a normally distributed value is 70. Instead, we define probabilities for intervals. We thus could ask what is the probability that someone is between 69.5 and 70.5.

In cases like height, in which the data is rounded, the normal approximation is particularly useful if we deal with intervals that include exactly one round number. For example, the normal distribution is useful for approximating the proportion of students reporting values in intervals like the following three:

mean(x <= 68.5) - mean(x <= 67.5)

[1] 0.114532

mean(x <= 69.5) - mean(x <= 68.5)

[1] 0.1194581

mean(x <= 70.5) - mean(x <= 69.5)

[1] 0.1219212

Note how close we get with the normal approximation:

pnorm(68.5, m, s) - pnorm(67.5, m, s)

[1] 0.1031077

pnorm(69.5, m, s) - pnorm(68.5, m, s)

[1] 0.1097121

pnorm(70.5, m, s) - pnorm(69.5, m, s)

[1] 0.1081743

However, the approximation is not as useful for other intervals. For instance, notice how the approximation breaks down when we try to estimate:

mean(x <= 70.9) - mean(x<=70.1)

[1] 0.02216749

with

pnorm(70.9, m, s) - pnorm(70.1, m, s)

[1] 0.08359562

In general, we call this situation discretization. Although the true height distribution is continuous, the reported heights tend to be more common at discrete values, in this case, due to rounding. As long as we are aware of how to deal with this reality, the normal approximation can still be a very useful tool.

The probability density

For categorical distributions, we can define the probability of a category. For example, a roll of a die, let’s call it $X$, can be 1,2,3,4,5 or 6. The probability of 4 is defined as:

$$\text{Pr}(X=4)=1/6$$

The CDF can then easily be defined: $$F(4)=\text{Pr}(X\le 4)=\text{Pr}(X=4)+\text{Pr}(X=3)+\text{Pr}(X=2)+\text{Pr}(X=1)$$

Although for continuous distributions the probability of a single value $\text{Pr}(X=x)$ is not defined, there is a theoretical definition that has a similar interpretation. The probability density at $x$ is defined as the function $f(a)$ such that:

$$F(a)=\text{Pr}(X\le a)={\int }_{-\mathrm{\infty }}^{a}f(x)dx$$

For those that know calculus, remember that the integral is related to a sum: it is the sum of bars with widths approximating 0. If you don’t know calculus, you can think of $f(x)$ as a curve for which the area under that curve up to the value $a$, gives you the probability $\text{Pr}(X\le a)$.

For example, to use the normal approximation to estimate the probability of someone being taller than 76 inches, we use:

1 - pnorm(76, m, s)

[1] 0.03206008

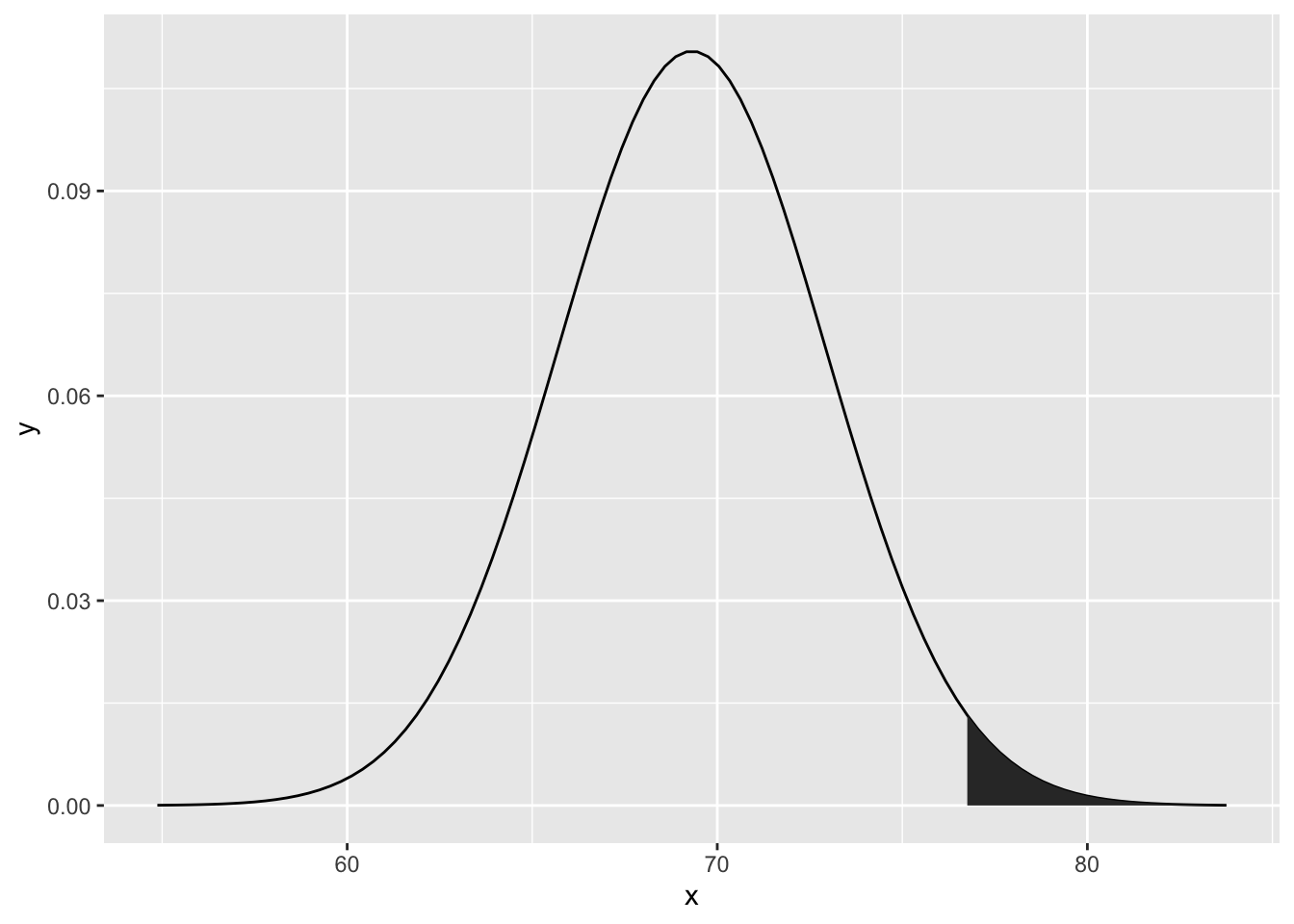

which mathematically is the grey area below:

The curve you see is the probability density for the normal distribution. In R, we get this using the function dnorm.

Although it may not be immediately obvious why knowing about probability densities is useful, understanding this concept will be essential to those wanting to fit models to data for which predefined functions are not available.

Monte Carlo simulations for continuous variables

R provides functions to generate normally distributed outcomes. Specifically, the rnorm function takes three arguments: size, average (defaults to 0), and standard deviation (defaults to 1) and produces random numbers. Here is an example of how we could generate data that looks like our reported heights:

n <- length(x)
m <- mean(x)
s <- sd(x)
simulated_heights <- rnorm(n, m, s)

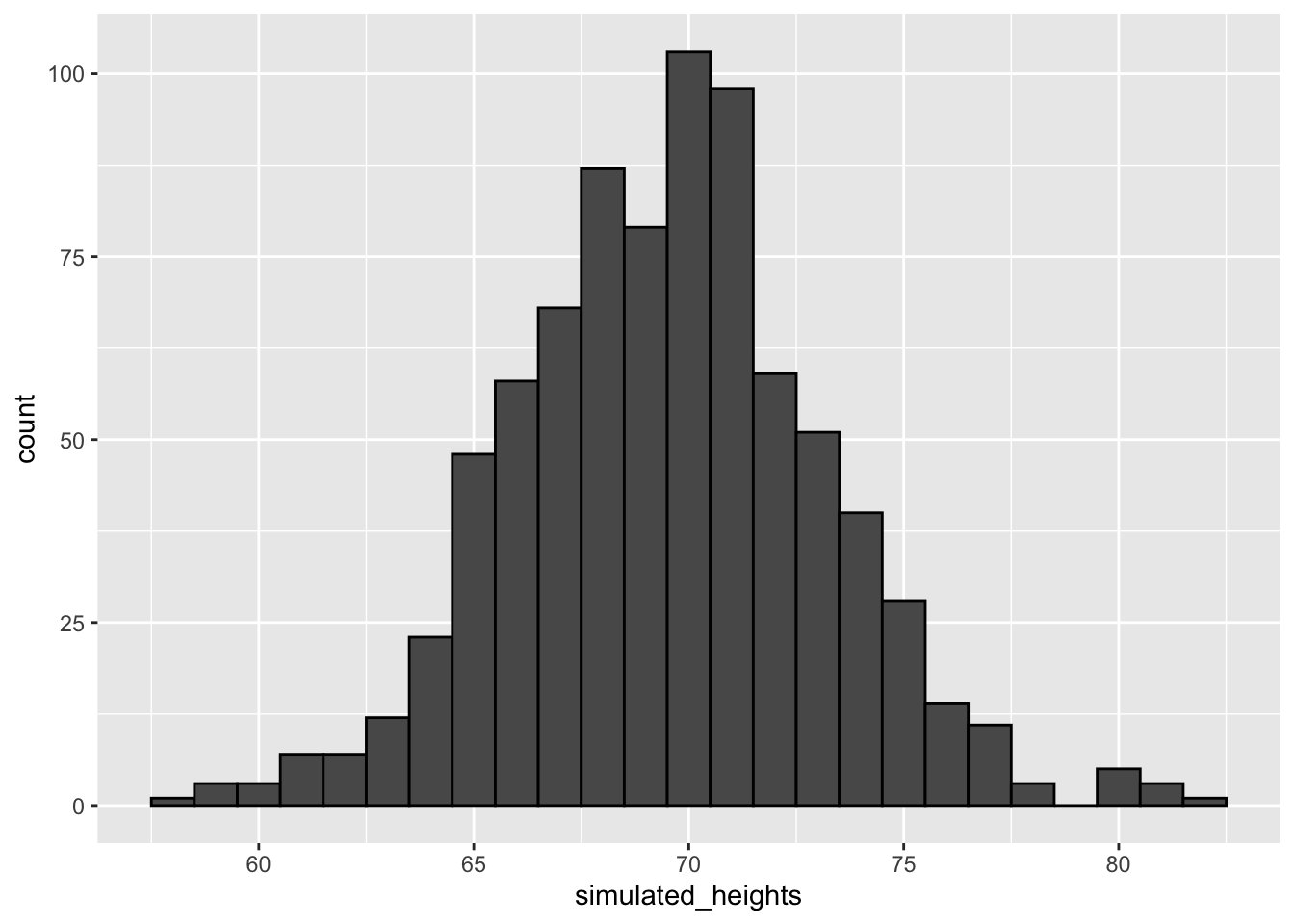

Not surprisingly, the distribution looks normal:

This is one of the most useful functions in R as it will permit us to generate data that mimics natural events and answers questions related to what could happen by chance by running Monte Carlo simulations.

If, for example, we pick 800 males at random, what is the distribution of the tallest person? How rare is a seven footer in a group of 800 males? The following Monte Carlo simulation helps us answer that question:

B <- 10000
tallest <- replicate(B, {
  simulated_data <- rnorm(800, m, s)
  max(simulated_data)
})

Having a seven footer is quite rare:

mean(tallest >= 7*12)

[1] 0.0172

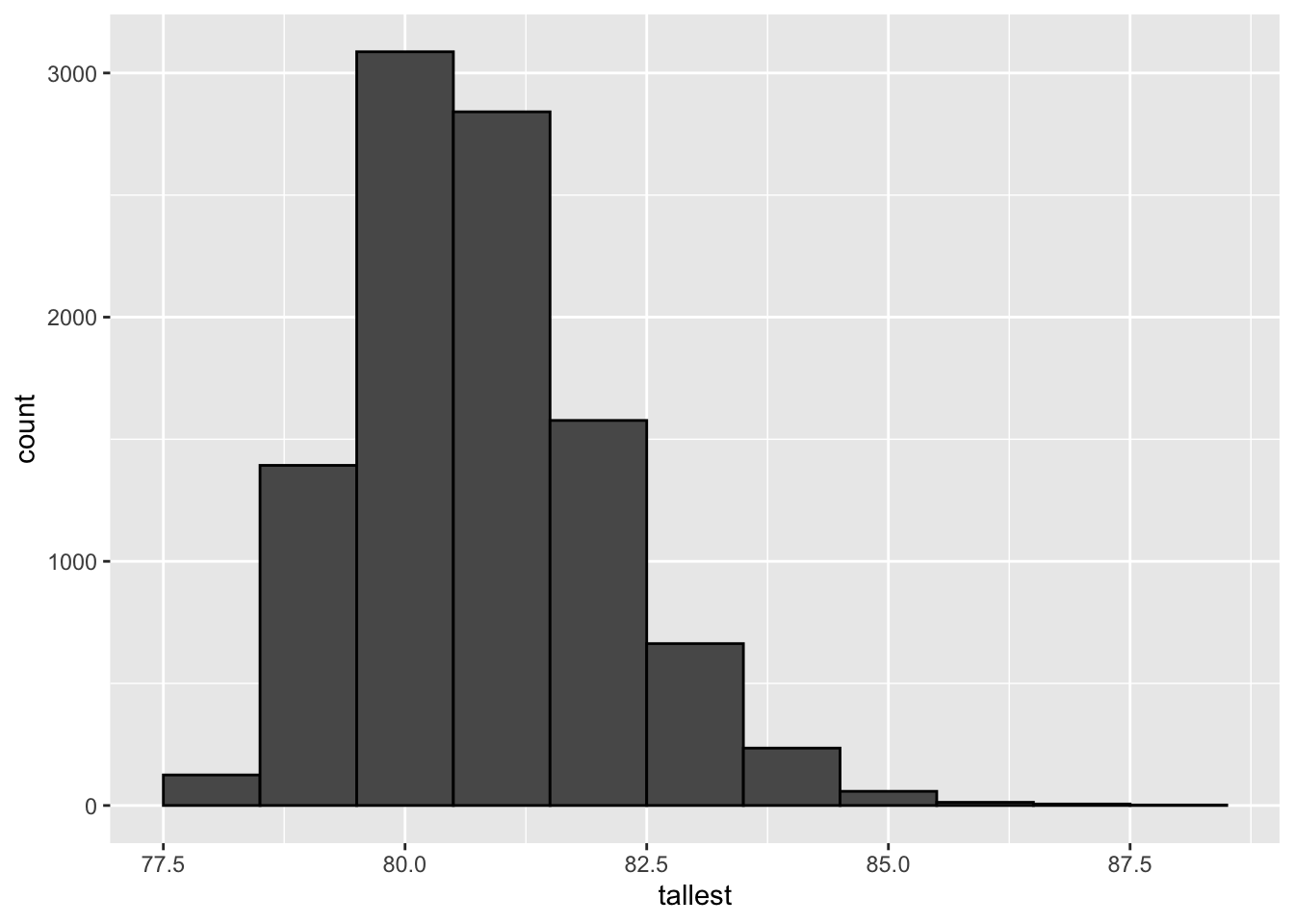

Here is the resulting distribution:

Note that it does not look normal.

Continuous distributions

The normal distribution is not the only useful theoretical distribution. Other continuous distributions that we may encounter are the student-t, Chi-square, exponential, gamma, beta, and beta-binomial. R provides functions to compute the density, the quantiles, the cumulative distribution functions and to generate Monte Carlo simulations. R uses a convention that lets us remember the names, namely using the letters d, q, p, and r in front of a shorthand for the distribution. We have already seen the functions dnorm, pnorm, and rnorm for the normal distribution. Remember that dnorm gives us the PDF, pnorm gives us the CDF, rnorm gives us random draws from the normal, and the function qnorm gives us the quantiles (the input to qnorm, then, must be between 0 and 1).

qnorm(.25, mean = 0, sd = 1)

[1] -0.6744898

qnorm(.25, mean = -10, sd = 5)

[1] -13.37245

qnorm(.975, mean = 0, sd = 1)

[1] 1.959964

TRY IT

1. Assume the distribution of female heights is approximated by a normal distribution with a mean of 64 inches and a standard deviation of 3 inches. If we pick a female at random, what is the probability that she is 5 feet or shorter?

2. Assume the distribution of female heights is approximated by a normal distribution with a mean of 64 inches and a standard deviation of 3 inches. If we pick a female at random, what is the probability that she is 6 feet or taller?

3. Assume the distribution of female heights is approximated by a normal distribution with a mean of 64 inches and a standard deviation of 3 inches. If we pick a female at random, what is the probability that she is between 61 and 67 inches?

4. Repeat the exercise above, but convert everything to centimeters. That is, multiply every height, including the standard deviation, by 2.54. What is the answer now?

5. Notice that the answer to the question does not change when you change units. This makes sense since the answer to the question should not be affected by what units we use. In fact, if you look closely, you notice that 61 and 64 are both 1 SD away from the average. Compute the probability that a randomly picked, normally distributed random variable is within 1 SD from the average.

6. To see the math that explains why the answers to questions 3, 4, and 5 are the same, suppose we have a random variable with average $m$ and standard error $s$. Suppose we ask the probability of $X$ being smaller or equal to $a$. Remember that, by definition, $a$ is $(a-m)/s$ standard deviations $s$ away from the average $m$. The probability is:

$$\text{Pr}(X\le a)$$

Now we subtract $\mu$ to both sides and then divide both sides by $\sigma$:

$$\text{Pr}(\frac{X-m}{s}\le \frac{a-m}{s})$$

The quantity on the left is a standard normal random variable. It has an average of 0 and a standard error of 1. We will call it $Z$:

$$\text{Pr}(Z\le \frac{a-m}{s})$$

So, no matter the units, the probability of $X\le a$ is the same as the probability of a standard normal variable being less than $(a-m)/s$. If mu is the average and sigma the standard error, which of the following R code would give us the right answer in every situation:

1. mean(X<=a)
2. pnorm((a - m)/s)
3. pnorm((a - m)/s, m, s)
4. pnorm(a)

7. Imagine the distribution of male adults is approximately normal with an expected value of 69 and a standard deviation of 3. How tall is the male in the 99th percentile? Hint: use qnorm.

8. The distribution of IQ scores is approximately normally distributed. The average is 100 and the standard deviation is 15. Suppose you want to know the distribution of the highest IQ across all graduating classes if 10,000 people are born each in your school district. Run a Monte Carlo simulation with B=1000 generating 10,000 IQ scores and keeping the highest. Make a histogram.

Fall 2024: I have moved Random Variables to the top of Thursday’s Week 5 content

Footnotes

1. https://en.wikipedia.org/wiki/Urn_problem

2. https://www.khanacademy.org/math/precalculus/prob-comb/dependent-events-precalc/v/monty-hall-problem

3. https://en.wikipedia.org/wiki/Monty_Hall_problem
