Combining plots using Patchwork

A good alternative to using two y-axes is to use two plots instead. The patchwork package makes this really easy to do with R. There are other similar packages that do this, like cowplot and gridExtra, but I’ve found that patchwork is the easiest to use and it actually aligns the different plot elements like axis lines and legends. The documentation for patchwork is really great and full of examples—you should check it out to see all the things you can do with it!

First, we load the libraries and data we’ll be using. We loaded the Atlanta weather data in Example 05:

library(tidyverse)  # For ggplot, dplyr, and friends
library(patchwork)  # For combining ggplot plots
weather_atl <- read_csv("/data/atl-weather-2019.csv")

To use **patchwork**, we need to (1) save our plots as objects and (2) add them together with `+`.

For instance, is there a relationship between temperature and humidity in Atlanta? We can plot both:

::: {.cell}

```{.r .cell-code}

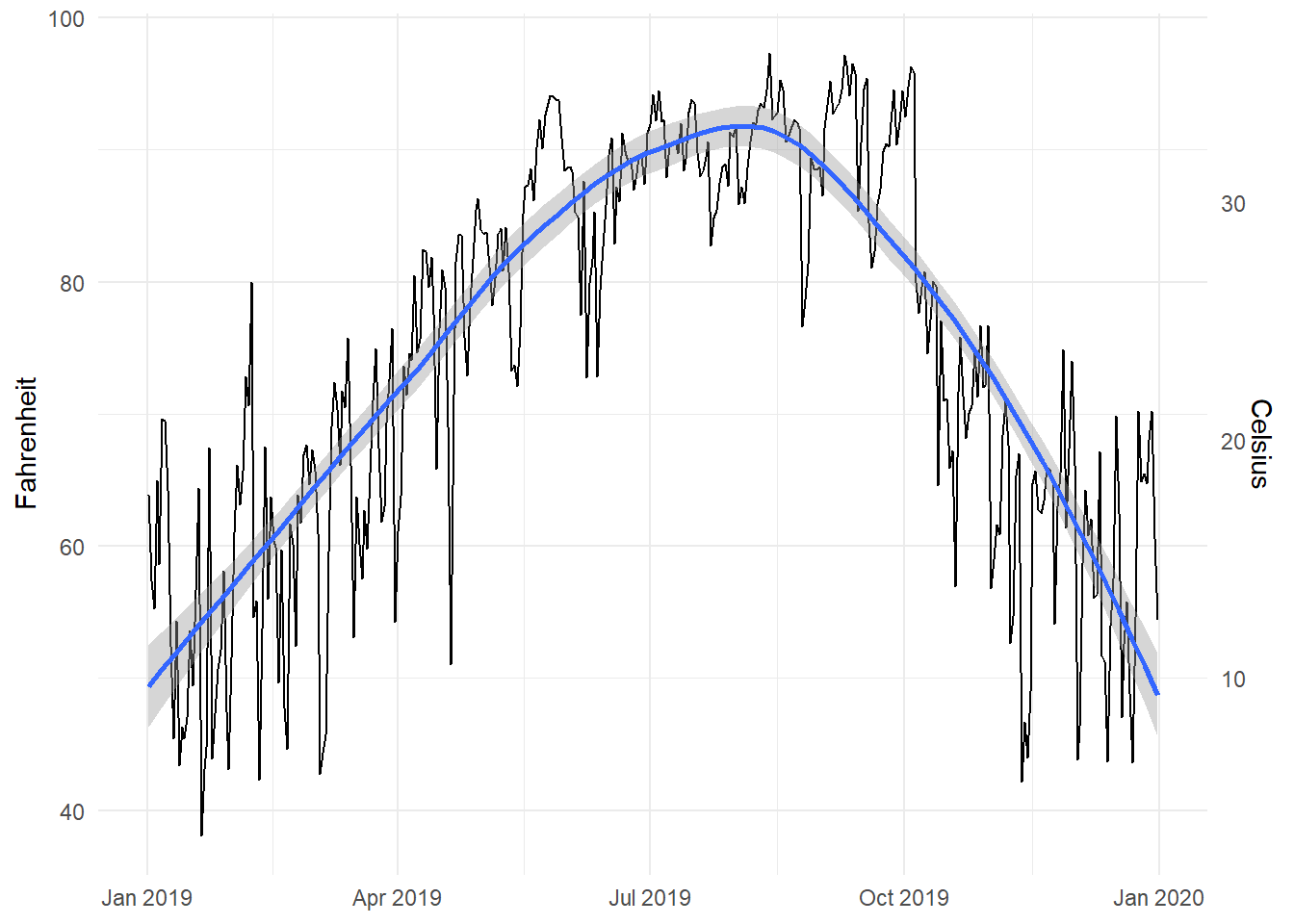

# Temperature in Atlanta
temp_plot <- ggplot(weather_atl, aes(x = time, y = temperatureHigh)) +
  geom_line() +
  geom_smooth() +
  scale_y_continuous(sec.axis = sec_axis(trans = ~ (32 - .) * -5/9,
                                         name = "Celsius")) +
  labs(x = NULL, y = "Fahrenheit") +
  theme_minimal()
temp_plot

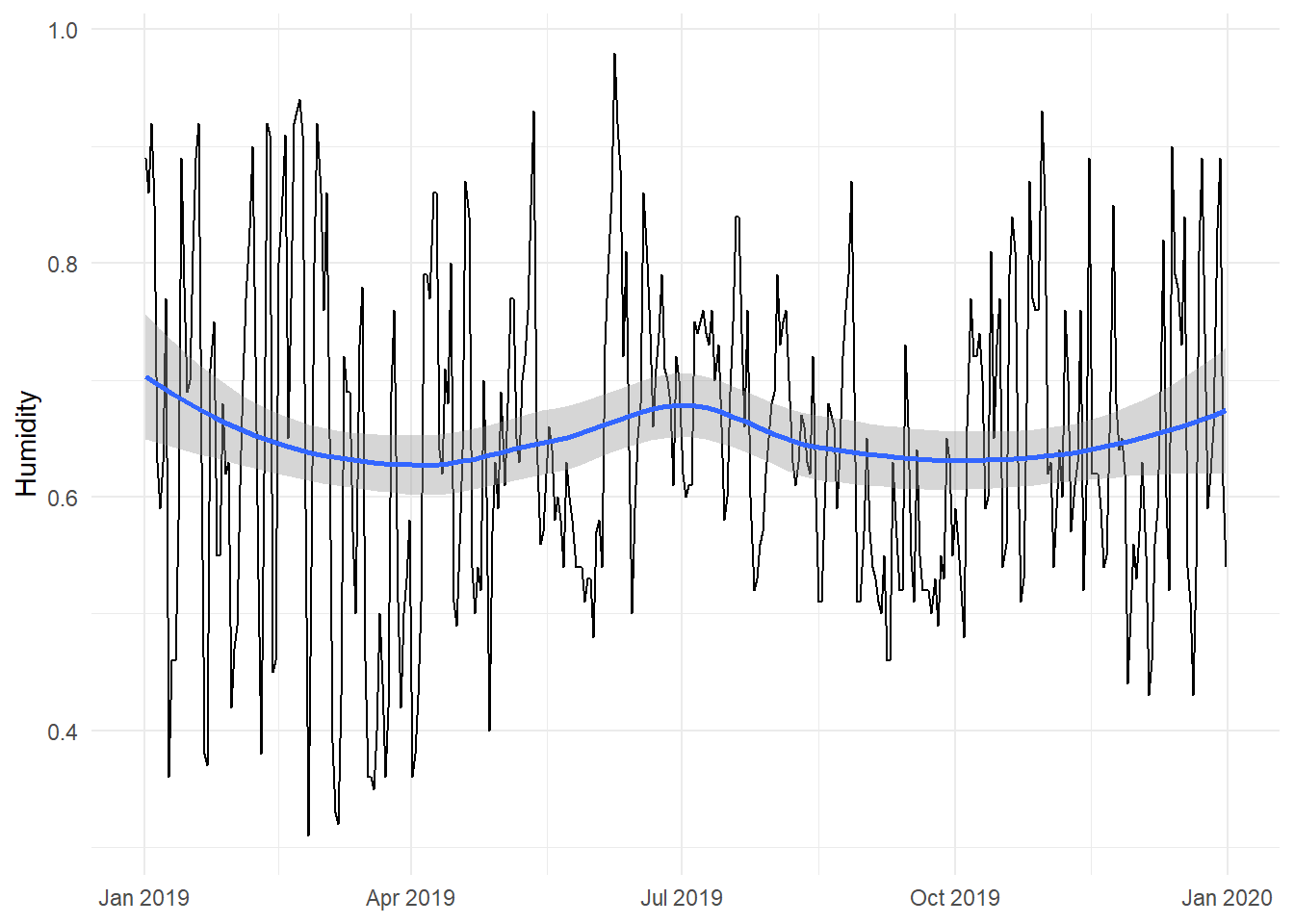

# Humidity in Atlanta
humidity_plot <- ggplot(weather_atl, aes(x = time, y = humidity)) +
  geom_line() +
  geom_smooth() +
  labs(x = NULL, y = "Humidity") +
  theme_minimal()
humidity_plot

:::

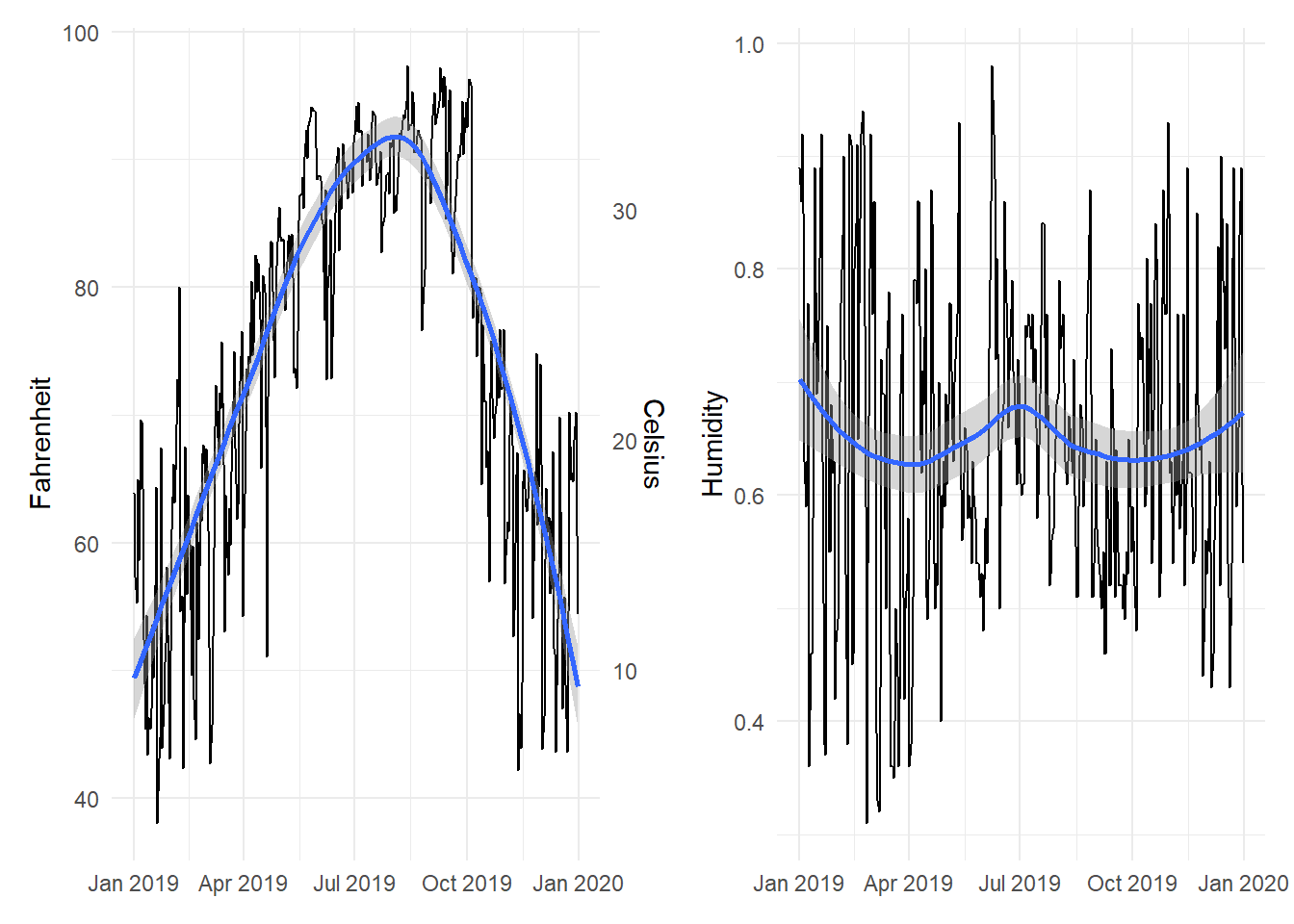

Right now, these are two separate plots, but we can combine them with + if we load patchwork:

library(patchwork)

temp_plot + humidity_plot

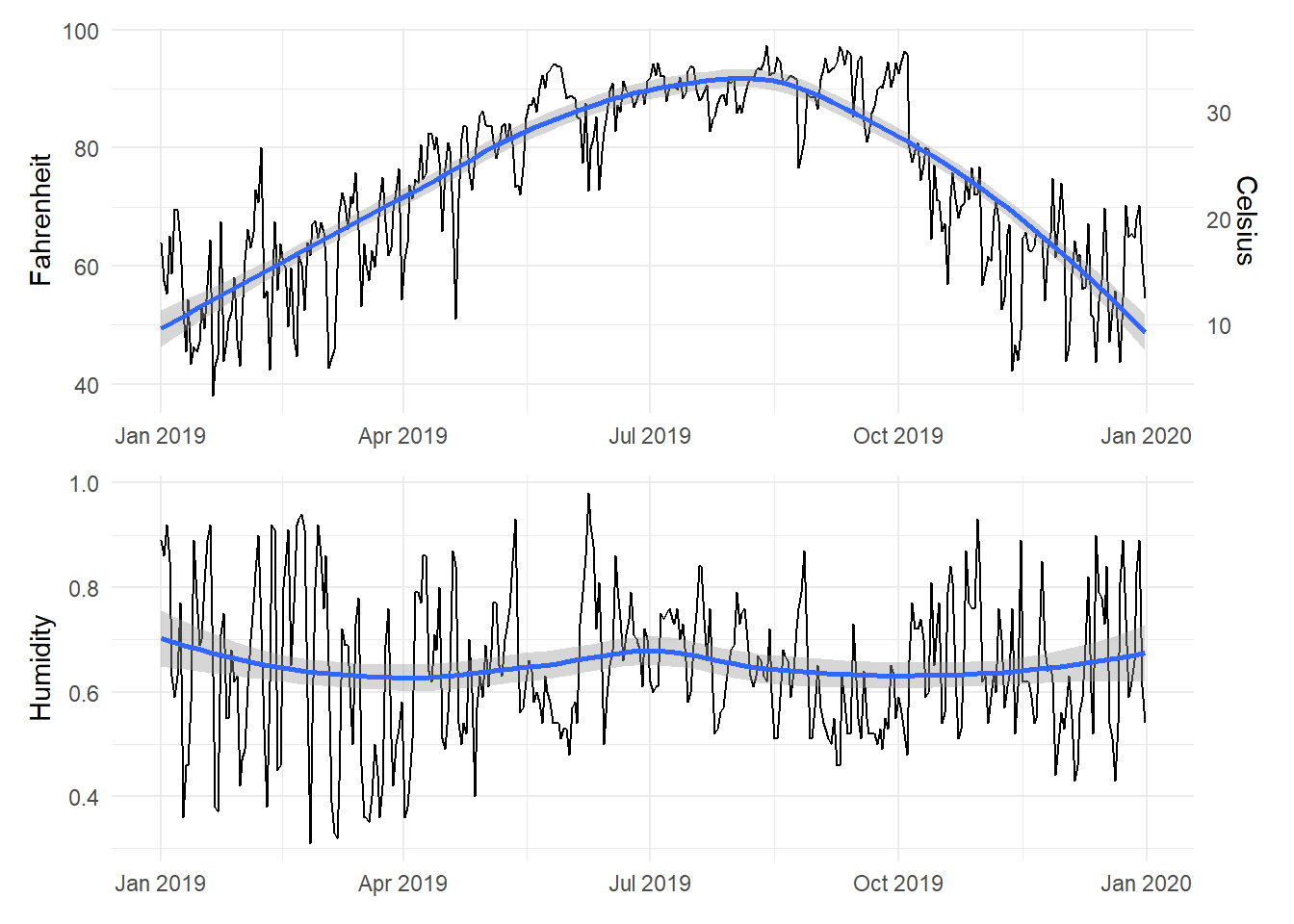

By default, patchwork will put these side-by-side. We can specify that we want the plots to be oriented over/under:

temp_plot / humidity_plot

Or we can change the orientation with the plot_layout() function:

temp_plot + humidity_plot +
  plot_layout(ncol = 1)

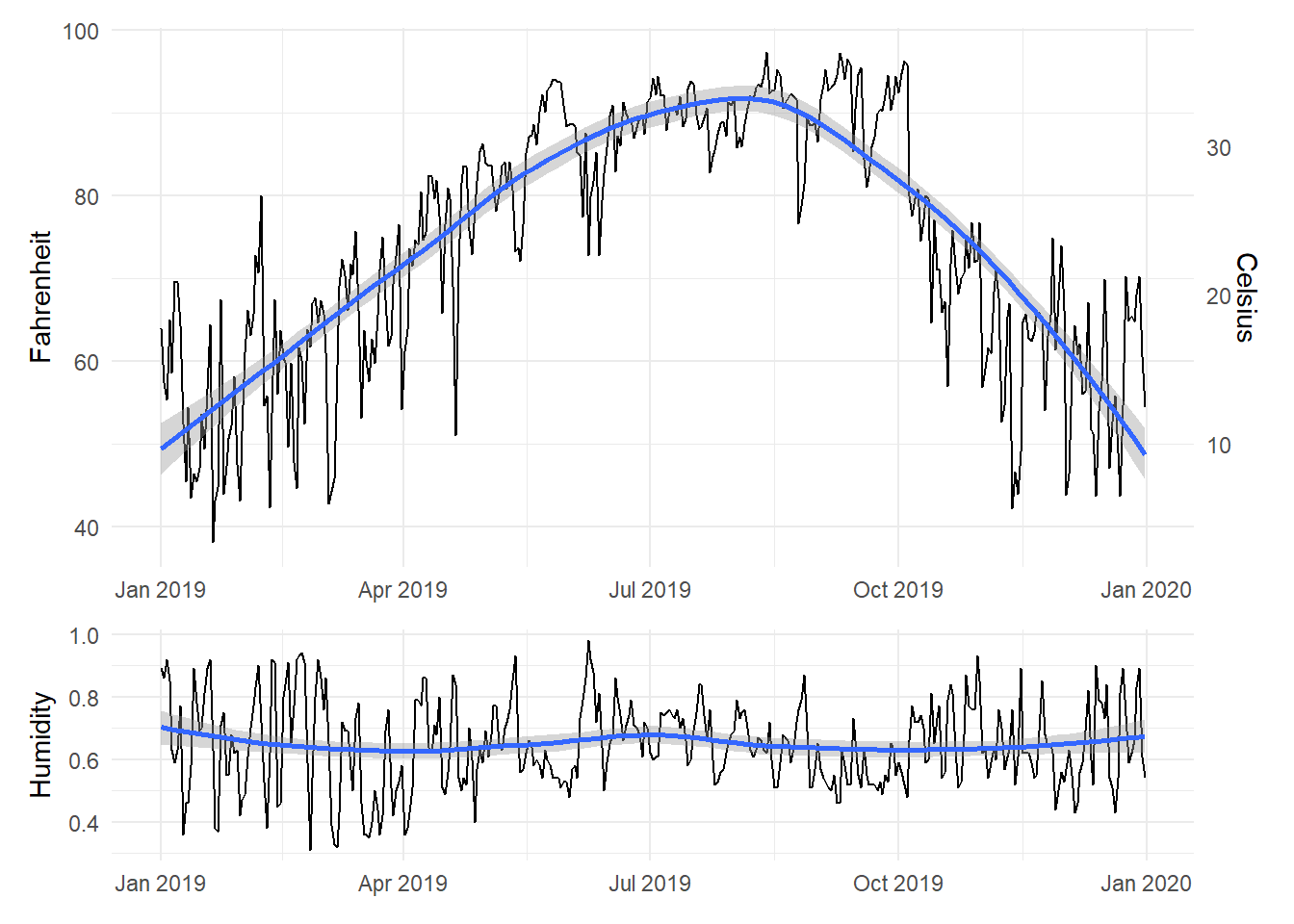

We can also play with other arguments in plot_layout(). If we want to make the temperature plot taller and shrink the humidity section, we can specify the proportions for the plot heights. Here, the temperature plot is 70% of the height and the humidity plot is 30%:

temp_plot + humidity_plot +
  plot_layout(ncol = 1, heights = c(0.7, 0.3))

Legal dual y-axes

It is fine (and often helpful) to use two y-axes if the two different scales measure the same thing, like counts and percentages, Fahrenheit and Celsius, pounds and kilograms, inches and centimeters, etc.

To do this, you need to add an argument (sec.axis) to scale_y_continuous() to tell it to use a second axis. This sec.axis argument takes a sec_axis() function that tells ggplot how to transform the scale. You need to specify a formula or function that defines how the original axis gets transformed. This formula uses a special syntax. It needs to start with a ~, which indicates that it’s a function, and it needs to use . to stand in for the original value in the original axis.

Since the equation for converting Fahrenheit to Celsius is this…

$$\text{C}=(32-\text{F})\times -\frac{5}{9}$$

…we can specify this with code like so (where . stands for the Fahrenheit value):

~ (32 - .) * -5 / 9

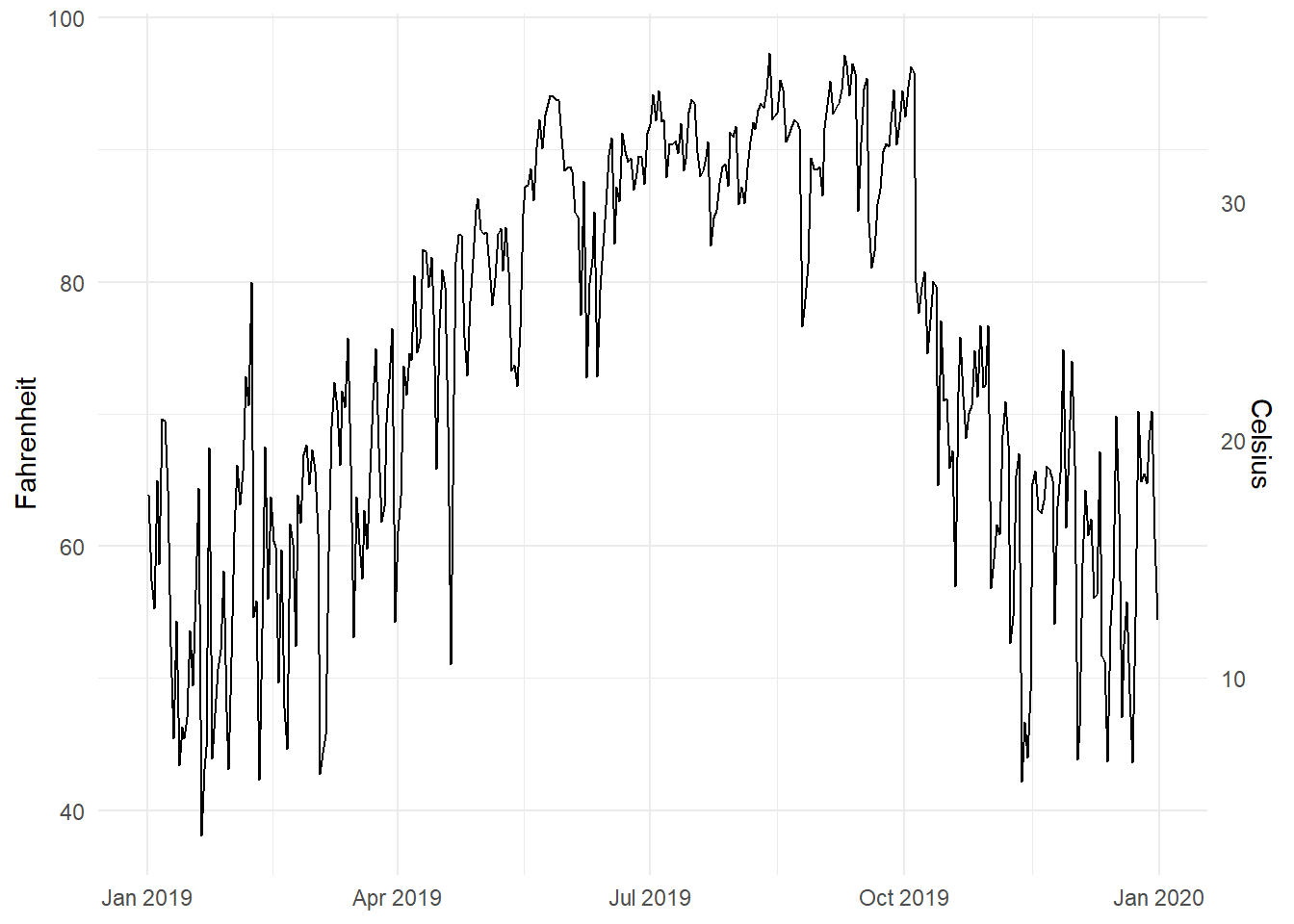

Here’s a plot of daily high temperatures in Atlanta throughout 2019, with a second axis:

ggplot(weather_atl, aes(x = time, y = temperatureHigh)) +
  geom_line() +
  scale_y_continuous(sec.axis = sec_axis(trans = ~ (32 - .) * -5/9,
                                         name = "Celsius")) +
  labs(x = NULL, y = "Fahrenheit") +
  theme_minimal()

For fun, we could also convert it to Kelvin, which uses this formula:

$$\text{K}=(\text{F}-32)\times \frac{5}{9}+273.15$$

ggplot(weather_atl, aes(x = time, y = temperatureHigh)) +
  geom_line() +
  scale_y_continuous(sec.axis = sec_axis(trans = ~ (. - 32) * 5/9 + 273.15,
                                         name = "Kelvin")) +
  labs(x = NULL, y = "Fahrenheit") +
  theme_minimal()
